AF-4 Series

Compact dual pressure performance for controlled flow environments.

  • Stable LP & HP handling
  • Smokeless operation without blower modulation
Request a Quote

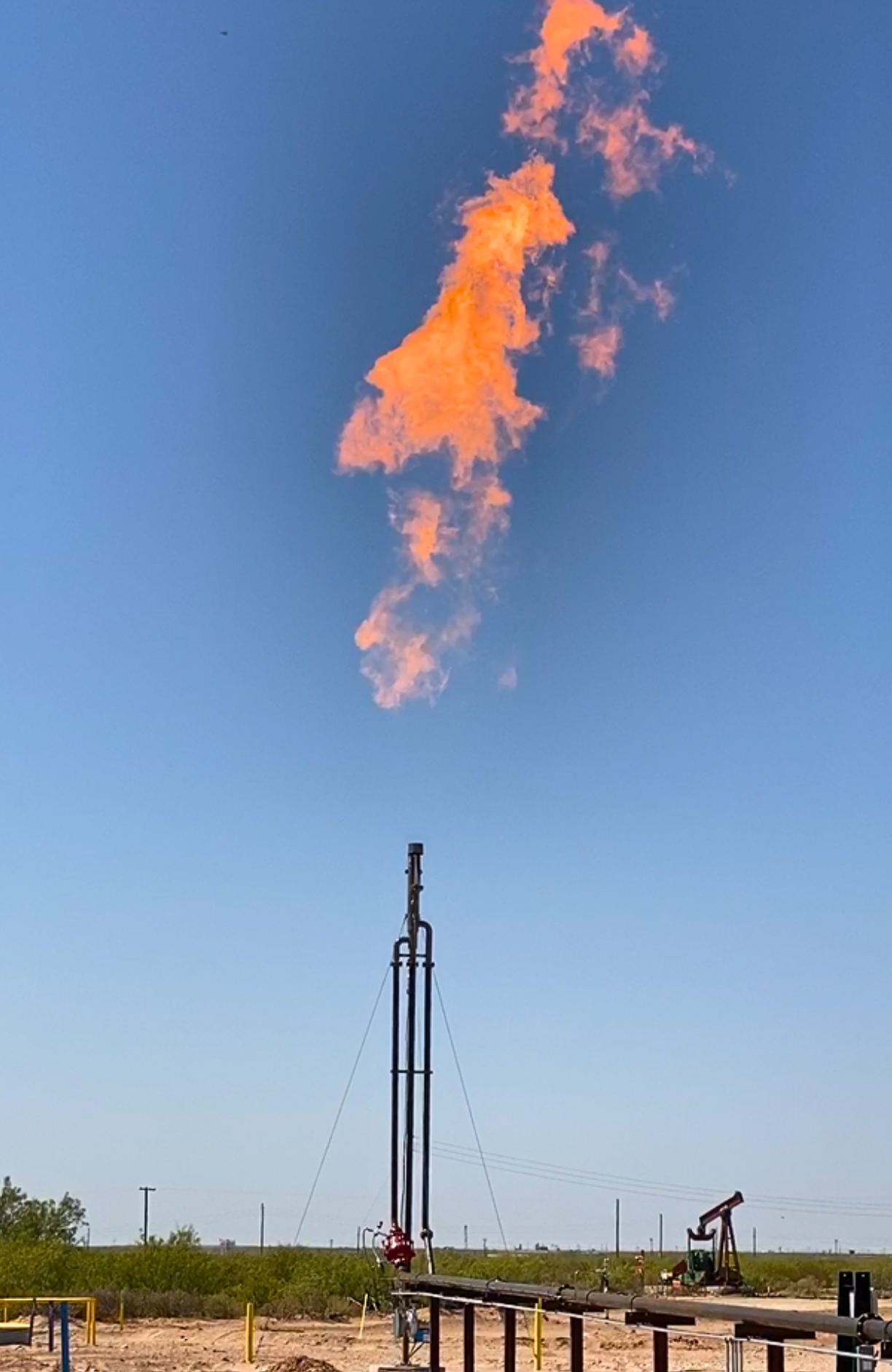

AF-4 Series flare system
AF-4 Series flare system
What It Is

A compact dual pressure flare system engineered for reliable, smokeless combustion across low to moderate flow conditions.

The AF-4 Series processes low-pressure and high-pressure gas streams independently within a single flare system, maintaining stable operation without added system complexity.

System Design

Engineered for simplicity, efficiency and low-pressure operation.

  • High-volume combustion air blower (typically 480 VAC, 3Ø)
  • No Variable Frequency Drive or flow meter required
  • Open-ended flare tip for minimal pressure drop
  • Optional high-pressure release capability
  • Independent LP & HP stream handling
AF-4 Series dual pressure flare configuration diagram

Capacity Range

Configured based on application and tip selection.

Base System

Up to ~1.3 MMSCFD

LP & HP handling within the standard dual pressure configuration.

LP Capacity

Up to 900 MCF @ 2200 BTU

Low-pressure vapor handling based on application conditions.

High-Pressure Options

Up to 20 MMSCFD (TBone® Fixed Orifice Tip)

Up to 10 MMSCFD (Variable Orifice Pressure Tip – VOPT)

Performance

Consistent combustion without active modulation.

  • Maintains smokeless operation from minimum to maximum flow
  • Stable performance without blower adjustment
  • Designed for continuous operation under variable production

Where It Fits

Optimized for facilities requiring compact, stable performance.

  • Tank batteries handling vapor recovery
  • Sites with lower to moderate throughput
  • Facilities with space or layout constraints
AF-4 dual pressure flare system detail

Configuration Options

Adapted to specific facility requirements.

  • Single or dual pressure configurations
  • TBone® Fixed Orifice Tip
  • Variable Orifice Pressure Tip (VOPT)
  • Application-based system tuning

Compliance

Engineered to support regulatory requirements.

  • Designed for EPA-compliant operation
  • Supports consistent destruction performance
  • Minimizes visible emissions during operation

Related Systems & Components

Supporting products and system components commonly evaluated alongside the AF-4 Series.

Dual Pressure Flares Overview
Parent Category

Dual Pressure Flares Overview

Complete dual pressure system architecture for combined LP and HP stream handling.
AF-6 Series Flares
Higher-Capacity Option

AF-6 Series Flares

Expanded throughput capacity for larger facilities and higher flow requirements.
Tri Tip Flare system
Broader Flexibility

Tri Tip® Flares

Multi-tip configuration designed for flexible operation across variable load conditions.
Variable Orifice Pressure Tips
Pressure-Tip Option

Variable Orifice Pressure Tips (VOPT’s)

Adaptive high-pressure tip configuration supporting controlled pressure handling.
Fixed Orifice TBone Flares
Fixed Orifice Path

Fixed Orifice TBone® Flares

High-pressure configuration engineered for increased capacity and release performance.
Tattle Tale monitoring system
Monitoring & Compliance

Tattle Tale® Advanced Flare Control and Monitoring

Integrated monitoring system providing operational visibility and compliance support.
Condensate Management
Upstream Support

Condensate Management

Liquid handling and knockout systems supporting overall flare performance.
Configure the Right AF-4 System for Your Facility

Configure the Right AF-4 System for Your Facility

System sizing and configuration based on your flow profile and operating conditions.

Request a Quote
